ローカルブレイクアウト（LBO）

https://www.rtpro.yamaha.co.jp/lbo/address_list.xml

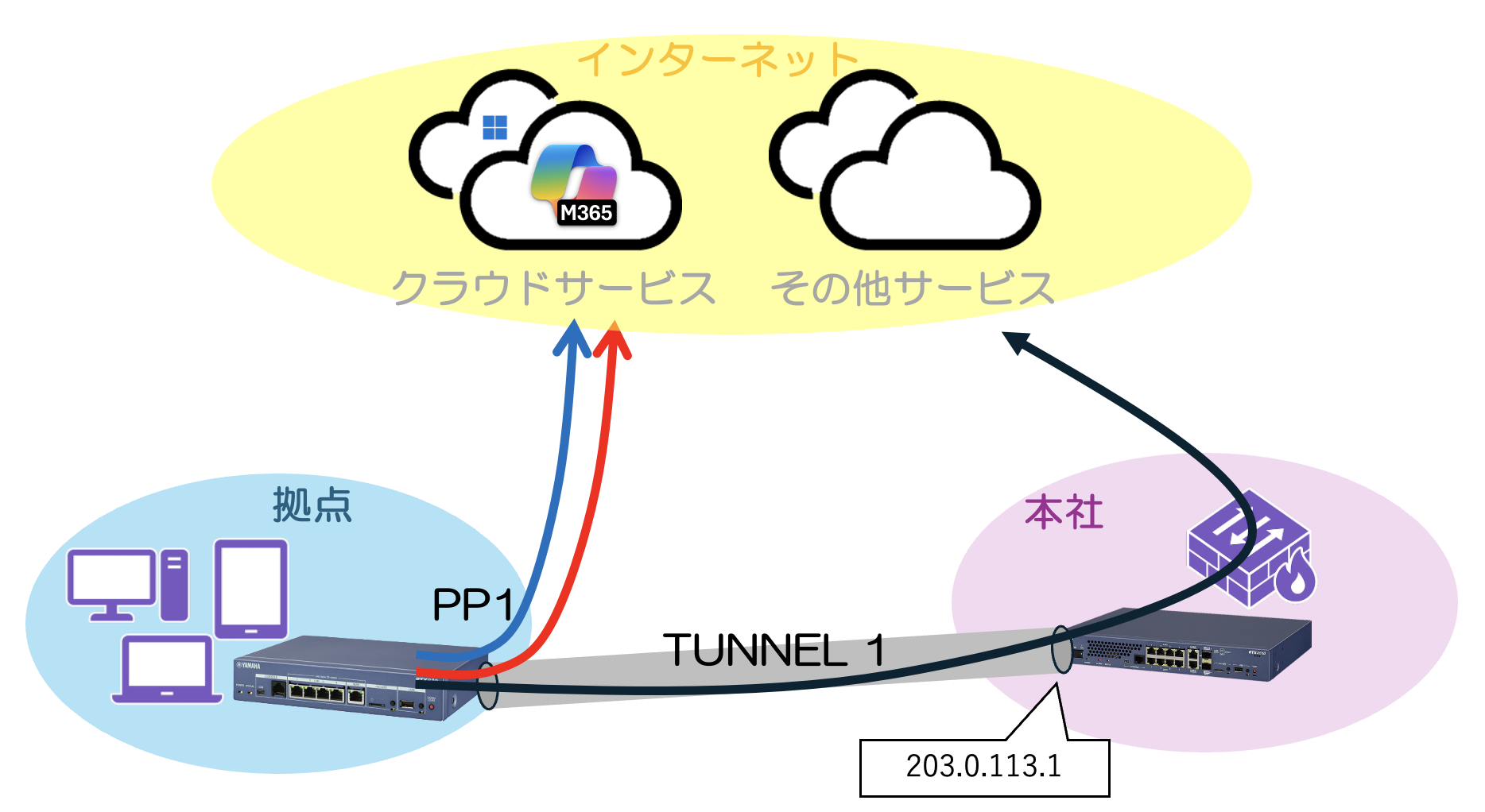

ip route default gateway pp 1 filter 1 gateway tunnel 1
ip filter 1 pass * @example * *

ip route default gateway pp 1 filter 1 2 gateway tunnel 1 #2
ip route 203.0.113.1 gateway pp 1
ip lan1 address 192.168.1.1/24
pp select 1
 pppoe use lan2
 pp auth accept pap chap
 pp auth myname MYNAME PASSWORD
 ppp lcp mru on 1454
 ppp ipcp ipaddress on
 ppp ipcp msext on
 ppp ccp type none
 ip pp mtu 1454
 ip pp nat descriptor 1
 pp enable 1
tunnel select 1
 ipsec tunnel 101
  ipsec sa policy 101 1 esp aes-cbc sha-hmac
  ipsec ike always-on 1 on
  ipsec ike keepalive use 1 on heartbeat
  ipsec ike local address 1 192.168.1.1
  ipsec ike local name 1 kyoten key-id
  ipsec ike pre-shared-key 1 text himitsu
  ipsec ike remote address 1 203.0.113.1
 ip tunnel tcp mss limit auto
 tunnel enable 1
ip filter 1 pass * @windows_update * *  #1
ip filter 2 pass * @m365 * *  #1
nat descriptor type 1 masquerade
nat descriptor address outer 1 ipcp
nat descriptor masquerade static 1 1 192.168.1.1 udp 500
nat descriptor masquerade static 1 2 192.168.1.1 esp
ipsec auto refresh on
dhcp service server
dhcp server rfc2131 compliant except remain-silent
dhcp scope 1 192.168.1.2-192.168.1.100/24
lbo use on #3

ip filter 1 pass * @windows_update * *  #1
ip filter 2 pass * @m365 * *  #1

ip route default gateway pp 1 filter 1 2 gateway tunnel 1 #2

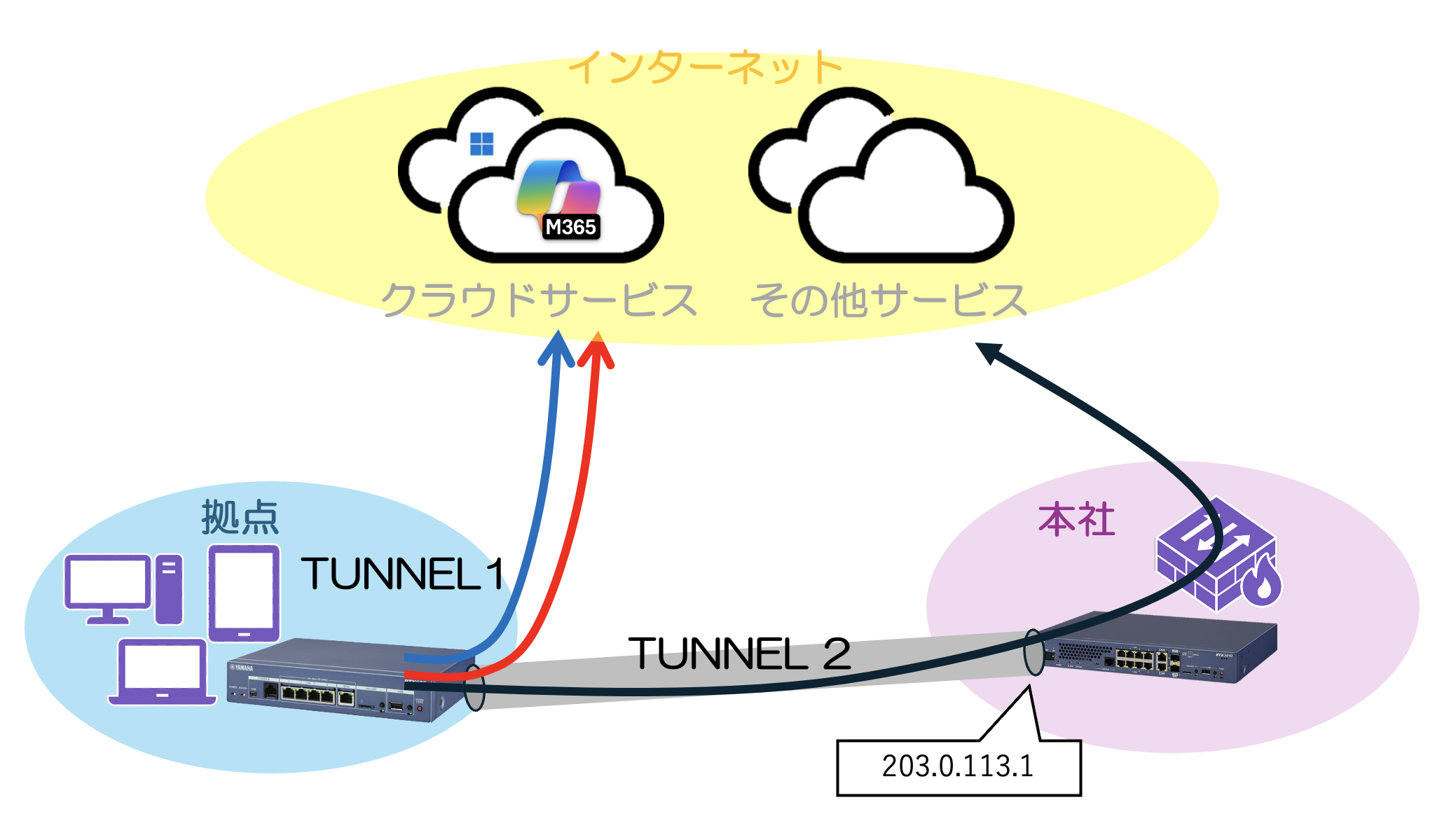

lbo use on #3

ip route default gateway tunnel 1 filter 1 2 gateway tunnel 2 #2
ipv6 route default gateway dhcp lan2 #2
ipv6 prefix 1 dhcp-prefix@lan2::/64
ipv6 source address selection rule lifetime
ip lan1 address 192.168.1.1/24
ipv6 lan1 address dhcp-prefix@lan2::1/64
ipv6 lan1 prefix change log on
ipv6 lan1 rtadv send 1 o_flag=on
ipv6 lan1 dhcp service server
ip lan2 address dhcp
ipv6 lan2 address dhcp
ipv6 lan2 secure filter in 101000 101001 101002 101003
ipv6 lan2 secure filter out 101099 dynamic 101080 101081 101082 101083 101084 101085 101098 101099
ipv6 lan2 dhcp service client
ngn type lan2 ntt
tunnel select 1
 tunnel encapsulation map-e
 tunnel map-e type ocn
 ip tunnel mtu 1460
 ip tunnel nat descriptor 20000
 tunnel enable 1
tunnel select 2
 ipsec tunnel 101
  ipsec sa policy 101 2 esp aes-cbc sha-hmac
  ipsec ike always-on 2 on
  ipsec ike keepalive use 2 on heartbeat
  ipsec ike local address 2 192.168.1.1
  ipsec ike local name 2 kyoten key-id
  ipsec ike pre-shared-key 2 text himitsu
  ipsec ike remote address 2 203.0.113.1
 ip tunnel tcp mss limit auto
 tunnel enable 2
ip filter 1 pass * @windows_update * *  #1
ip filter 2 pass * @m365  #1
ip filter 500000 restrict * * * * *
nat descriptor type 20000 masquerade
nat descriptor address outer 20000 map-e
ipv6 filter 101000 pass * * icmp6 * *
ipv6 filter 101001 pass * * tcp * ident
ipv6 filter 101002 pass * * udp * 546
ipv6 filter 101003 pass * * 4
ipv6 filter 101099 pass * * * * *
ipv6 filter dynamic 101080 * * ftp
ipv6 filter dynamic 101081 * * domain
ipv6 filter dynamic 101082 * * www
ipv6 filter dynamic 101083 * * smtp
ipv6 filter dynamic 101084 * * pop3
ipv6 filter dynamic 101085 * * submission
ipv6 filter dynamic 101098 * * tcp
ipv6 filter dynamic 101099 * * udp
schedule at 1 startup * lua emfs:/ocn_map_e.lua
sip use on
lbo use on #3
embedded file ocn_map_e.lua <<EOF
SERVER_URL = "アドレス解決システムURL"
USERNAME = "アドレス解決システム認証用ID"
PASSWORD = "アドレス解決システム認証用パスワード"
NGN_IF = "LAN1"

LOG_PTN1 = NGN_IF .. ": link up"
LOG_PTN2 = "%[OCN MAP%-E%] hostname="
PTN = /(Add IPv6 prefix|LAN1: link up|hostname=)/
LOG_LEVEL = "info"
LOG_PFX = "[OCN MAP-E]"

function logger(msg)
rt.syslog(LOG_LEVEL, string.format("%s %s", LOG_PFX, msg))
end
function retry_timer(t, c)
return (t * 2 * c)
end
local rtn, str, count, log, sleep_time, hostname, tmp
local req_t = {}
local res_t
math.randomseed(os.time())
req_t.method = "GET"

req_t.auth_type = "basic"
req_t.auth_name = USERNAME
req_t.auth_pass = PASSWORD
rtn, str = rt.syslogwatch(LOG_PTN2, 1, 30)
if (rtn > 0) then
tmp, hostname = string.split(str[1], "=")
end
while true do
count = 1
while hostname do
req_t.url = string.format("%s?hostname=%s", SERVER_URL, hostname)
rt.sleep(2)
res_t = rt.httprequest(req_t)
logger("Notified IPv6 address to the address resolution server.")
if res_t.rtn1 then
if res_t.code == 200 then
if string.match(res_t.body, "good") or string.match(res_t.body, "nochg") or str
ing.match(res_t.body, "nohost") then
log = string.format("Succeeded to notify IPv6 address to the address resolution
 server. (code=%d)", res_t.code)
logger(log)
break
end
end
log = string.format("Failed to notify IPv6 address to the address resolution se
rver. (code=%d)", res_t.code)
logger(log)
else
logger("Not response from the address resolution server.")
end
sleep_time = retry_timer(60, count)
if (sleep_time > 3600) then
sleep_time = 3600
else
count = count * 2
end
rt.sleep(sleep_time)
end
sleep_time = math.random(43200, 86400)
rtn, str = rt.syslogwatch(PTN, 1, sleep_time)
if (rtn > 0) and string.match(str[1], LOG_PTN2) then
tmp, hostname = string.split(str[1], "=")
elseif (rtn > 0) and string.match(str[1], LOG_PTN1) then
rt.sleep(5)
end
end
EOF

ip filter 1 pass * @windows_update * *  #1
ip filter 2 pass * @m365 * *  #1

ip route default gateway tunnel 1 filter 1 2 gateway tunnel 2 #2
ipv6 route default gateway dhcp lan2 #2

lbo use on #3

<?xml version="1.0" encoding="UTF-8"?>
<products updated="2025061000">
  <product name="service1">
    <addresslist type="IPv4">
      <address>203.0.113.0/28</address>
      <address>203.0.113.32/28</address>
    </addresslist>
  </product>
  <product name="service2">
    <addresslist type="IPv4">
      <address>203.0.113.64/28</address>
      <address>203.0.113.96/28</address>
    </addresslist>
  </product>
</products>

ip route default gateway pp 1
ip lan1 address 192.168.1.1/24
pp select 1
 pppoe use lan2
 pp auth accept pap chap
 pp auth myname MYNAME PASSWORD
 ppp lcp mru on 1454
 ppp ipcp ipaddress on
 ppp ipcp msext on
 ppp ccp type none
 ip pp mtu 1454
 ip pp secure filter out 1 2 99   #3
 ip pp nat descriptor 1
 pp enable 1
ip filter 1 reject * @service1 * *  #2
ip filter 2 reject * @service2 * *  #2
ip filter 99 pass * * * *  #2
nat descriptor type 1 masquerade
nat descriptor address outer 1 primary
dhcp service server
dhcp server rfc2131 compliant except remain-silent
dhcp scope 1 192.168.1.2-192.168.1.100/24
lbo use on #4
lbo list secondary https://example.com/address_list.xml #1

lbo list secondary https://example.com/address_list.xml #1

ip filter 1 reject * @service1 * *  #2
ip filter 2 reject * @service2 * *  #2
ip filter 99 pass * * * *  #2

ip pp secure filter out 1 2 99   #3

lbo use on #4
